Path of travel

Short Version:

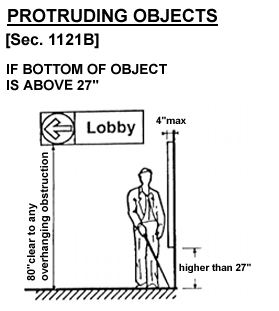

  1. Any overhanging object must be over 80" from the walking surface.

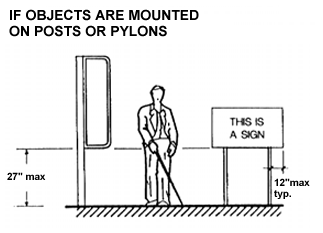

  2. Objects that protrude into the path of travel more than 4" must have the lowest point no higher than 27" from the walking surface.
  3. Generally the path-of-travel must be 48" or wider.





Accessibility

Communications

Credentials

Deadlines

Site Developement

Site Drawings

Electrical Distribution

Janitorial Services

Labor

Local Information

Local Support

Permits

Production Trailers

Safety

Security

Services

Site Operations

Solutions

Special Projects

Special Needs

Water

Calendar

Contact EPS

Index

SiteCam

3/19/2002



Cable Crossings. If the height of the cable is 0.5" or less, a ramped covering with a slope of 1:2 is acceptable.

If the cable height is over 0.5" a ramped covering with a slope of 1:12 is required.



Next
